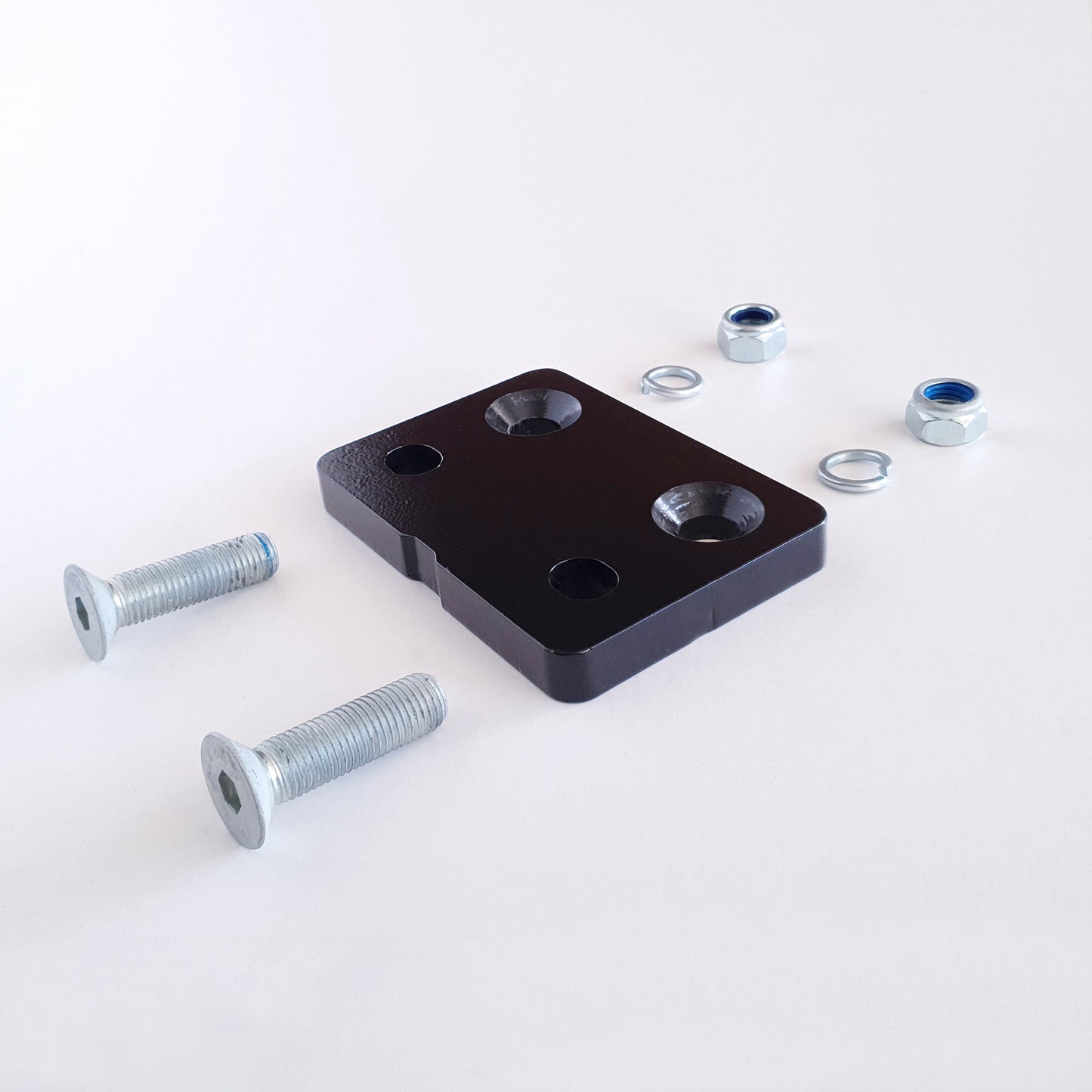

4 hole tow ball raiser or dropper plate – 16mm

•  Extra thick and strong16mm Steel, Exterior Powder Coated
• Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm centre to centre)
• 105mm (H) x 145mm (W)

Benefits

• Can raise or lower the tow ball by 50mm
• No Drilling required.
• The new 50mm adjustment holes are counter sunk at back for high tensile counter sunk screws.
• Can also be used as a “4 hole spacer plate - 16mm” for a Uni. WC.

Notes

• Need 78mm vertical clearance from centre of factory std tow ball holes to top of spacer plate.

• The original vehicles M16 Hexagonal bolts that hold the tow ball is generally too long and should sufficient for bolting the raiser/dropper plate to vehicle
• We supply 2x M16 Counter sunk screws, Nyloc nuts and washers help to secure the tow ball only.
• The countersunk head allows you to pre fit the tow ball to Raiser/dropper plate without the head of screw interfering with the factory tow ball plate, once fitted to vehicle
