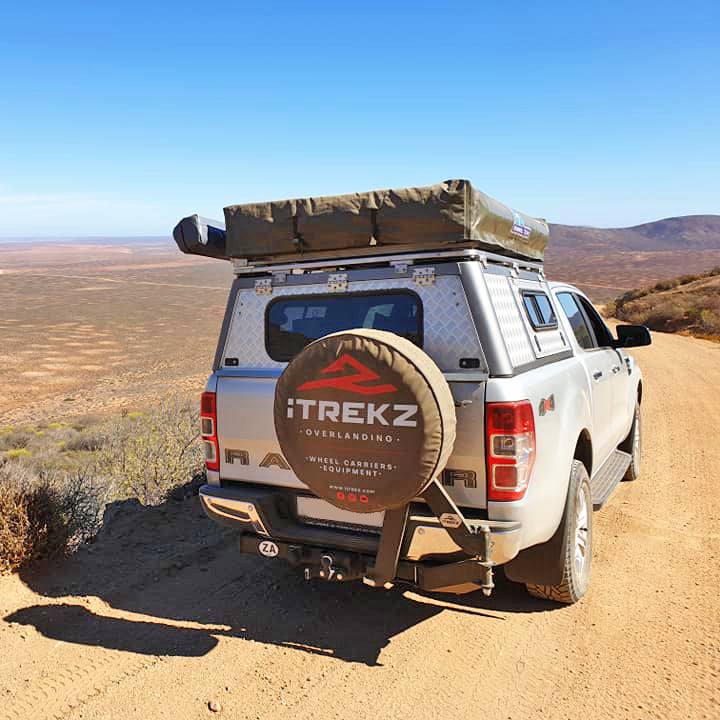

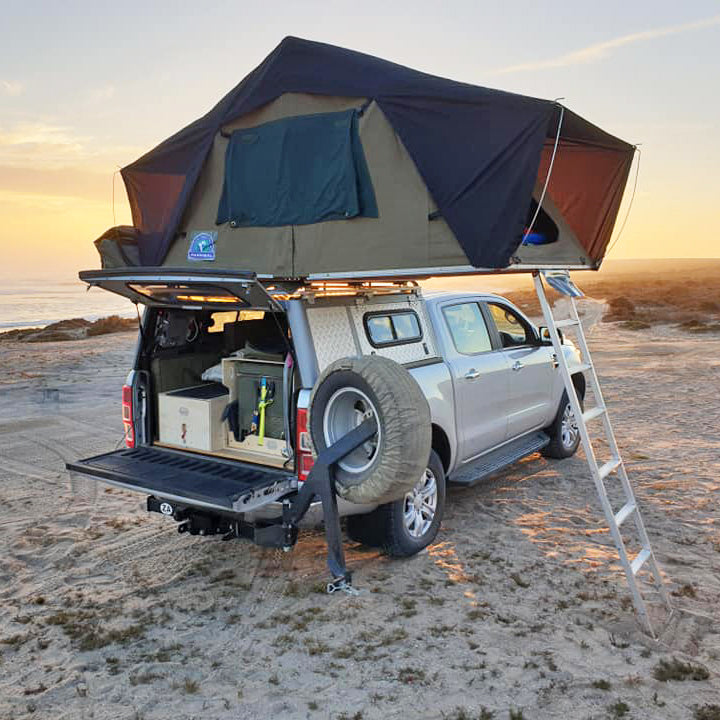

T6 Ford Ranger-specific Spare Wheel Carrier

Designed for a T6 (2021-2022) Ford Ranger only

• Fits rims with a 6 hole bolt pattern of 139.7mm
• Solid with thick reinforced 3-12mm Steel , Exterior Powder Coated
• Clamps and Bolts onto the std black 89x89mm square tube under the bumper
• 790mm (H) x 720mm (W) & weight 20kg

Benefits

• Low cost compared to a full metal Bumper and swing arm conversion and no major additional labour fees
• Easy access to spare wheel and under vehicle wheel now becomes your second reserve.
• Retain factory bumper and electronics and warranty!
• Easy to self-instal and remove between trips (15min max)
• Lighter weight than full metal bumper/swing arm conversion. Cheaper on fuel.
• Better weight distribution on stock suspension. no suspension upgrade required
• Patented “clamping wedge” design to prevent vibrations unlike most other spare wheel carriers

Notes

• The 89x89mm black tow bar tube/frame needs to be free of and welded-on recovery points etc. to the right side of tow ball. Need accessory free/clean tube of 470mm long area.
• All 6x bolts required to secure T6 WC to tow bar tube is supplied. As well as the 3x std chrome M12x1.5 (19mm head) dome nuts
• Comes with Lock Pin to lock spare wheel to carrier. (general hardware store lock for Lock Pin not supplied)
• Soon to be discontinued since the NEW Uni. WC will be replacing it.
