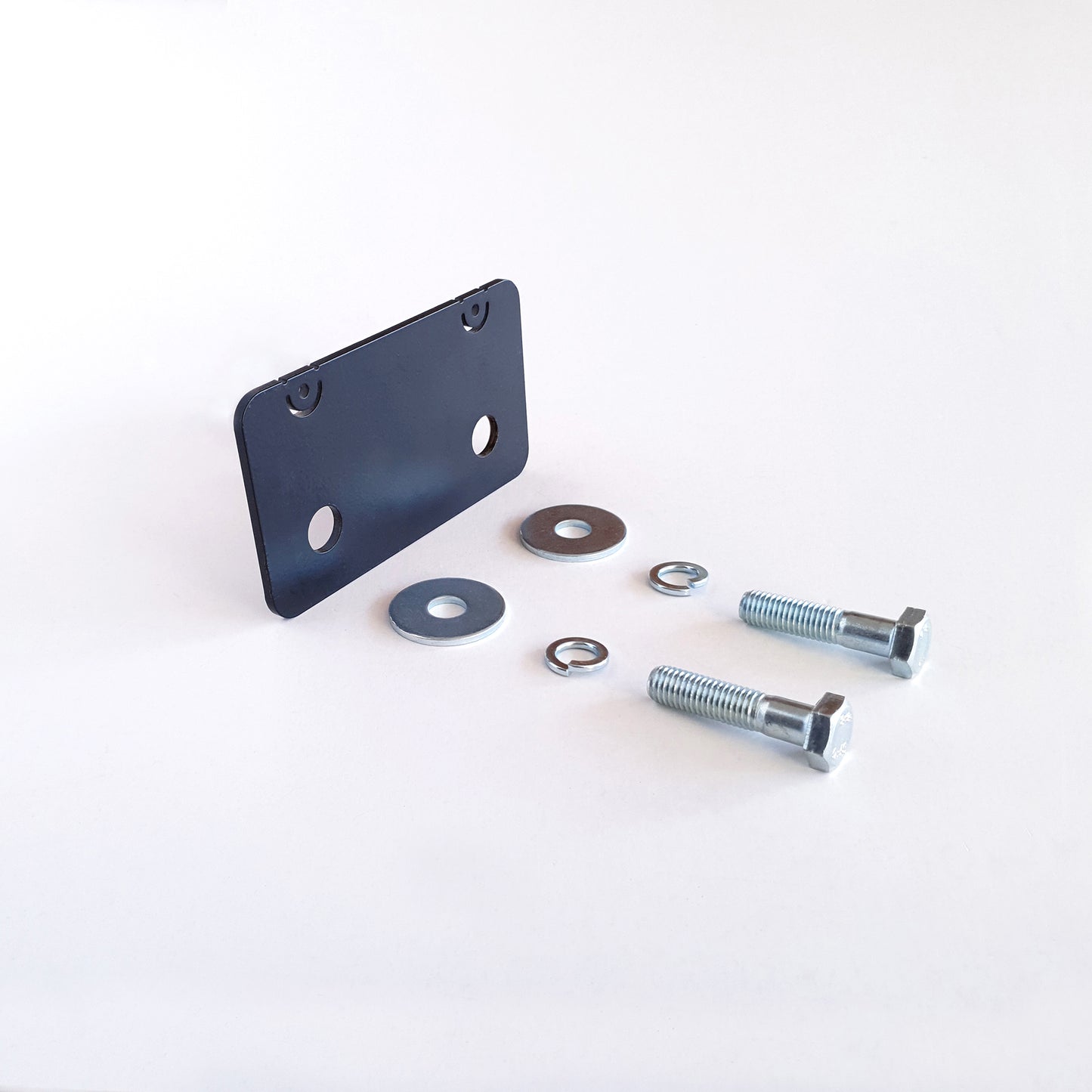

Spacer Plate - 3 options

• Extra thick and strong16mm Steel, Exterior Powder Coated
• Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm centre to centre)
• 145mm (H) x 145mm (W)

Benefits

• Suited as a Uni. WC Spacer
• This spacer, in conjunction with a “T6 Ford Ranger clamp” allows one to use an additional 2x bolts to secure the Uni. WC without drilling into 2012-2021 T6 Ford Ranger tow plate. (Not an essential item to use 4x bolts to secure Uni. WC - sometimes more is better)
• Can be used as a simple tow ball raiser/dropper plate with conventual M16 Bolts. You may need to drill out extra holes in your tow bar plate.
• This is a similar item to the “6 hole tow ball raiser or dropper plate -16mm”. see for full description.

Notes

• Need 118mm vertical clearance from centre of factory std tow ball holes to top edge of spacer plate.
• The top holes is 50mm and 90mm higher than bottom tow ball holes.
• You may need to redrill your existing tow ball plate for bolts to go through if you want to additional anchoring bolts to secure your Uni. WC (Min 16mm - Max 18mm through holes – or drill and tap smaller holes)
• We do sell a “tow ball plate - drill jig” to make it easier to align and square up new holes
• Doesn’t come with counter sunk holes or 2x M16 counter sunk screws, whereas the Raiser/dropper plates does.

Lead time
Please note: Our lead-time is 2-4 weeks
We will inform you when it is ready to ship/collect.
