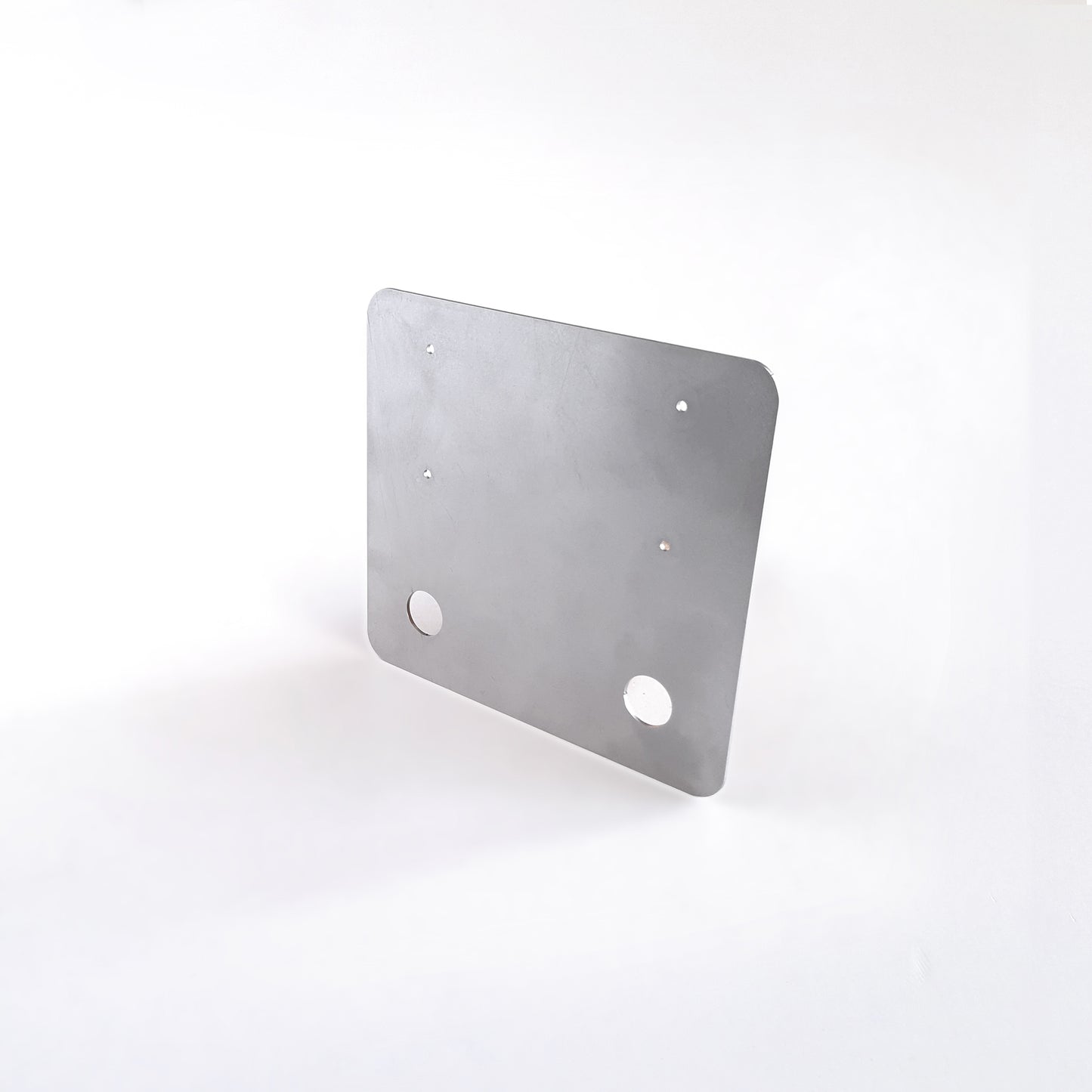

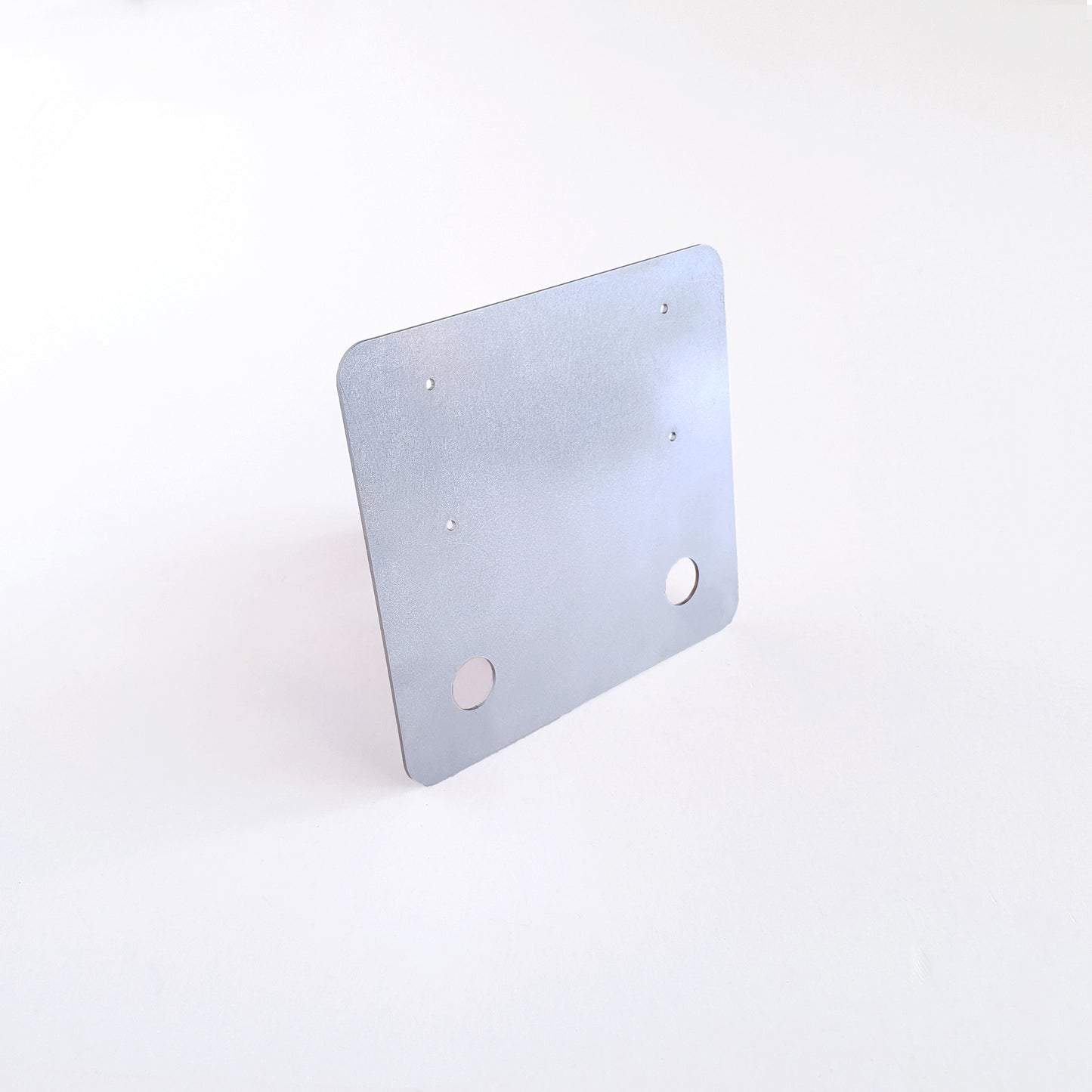

Tow ball plate - Drill Jig

• 1.2mm 3cr12 stainless steel
• Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm centre to centre)
• 131mm (H) x 145mm (W)

Benefits

• Self-drilling
• The 3mm pilot holes are spaced 50mm and 90mm above the centre of tow bolt holes
• Finished holes size to be Min 16mm -Max 18mm through holes – or drill and tap smaller holes
