Itrekz

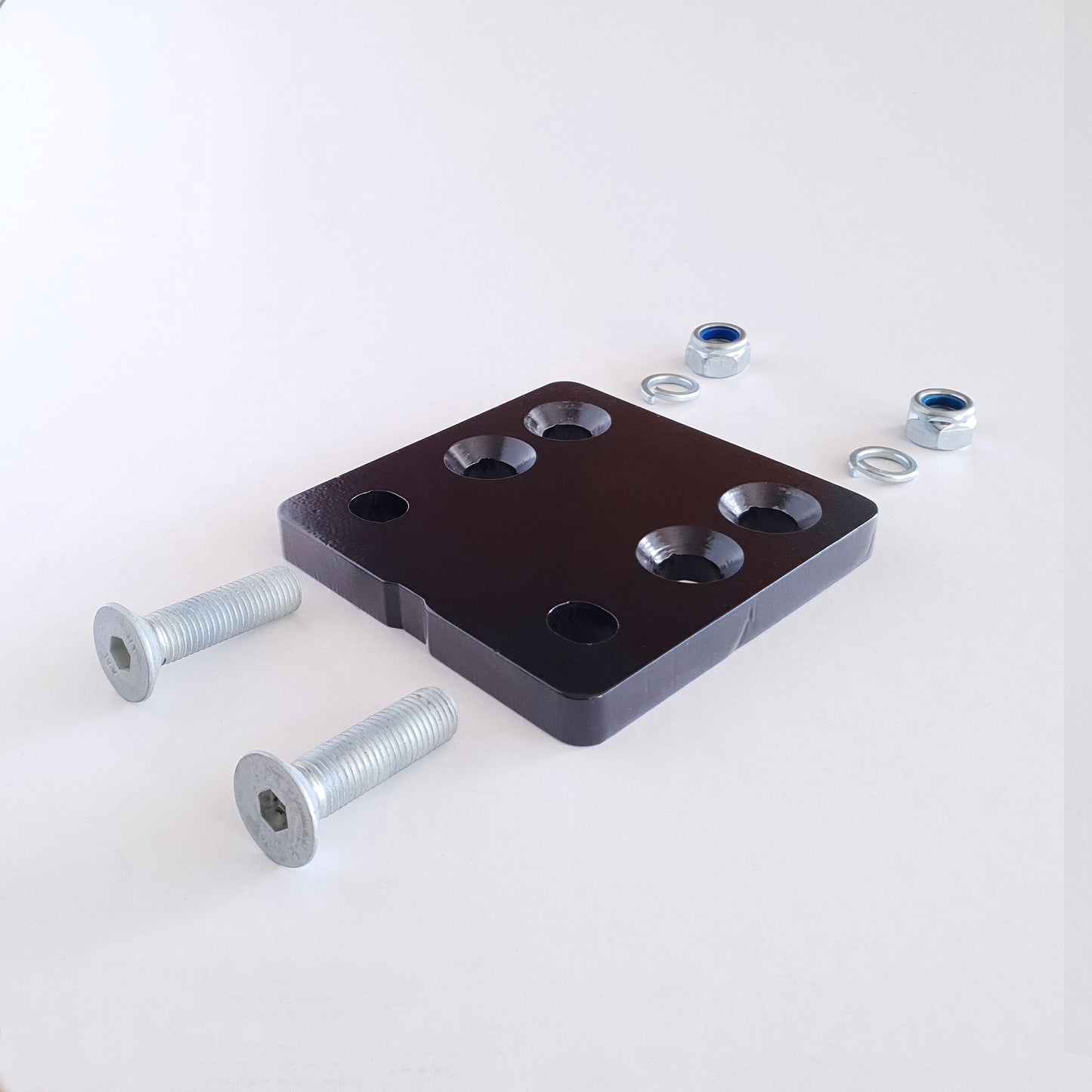

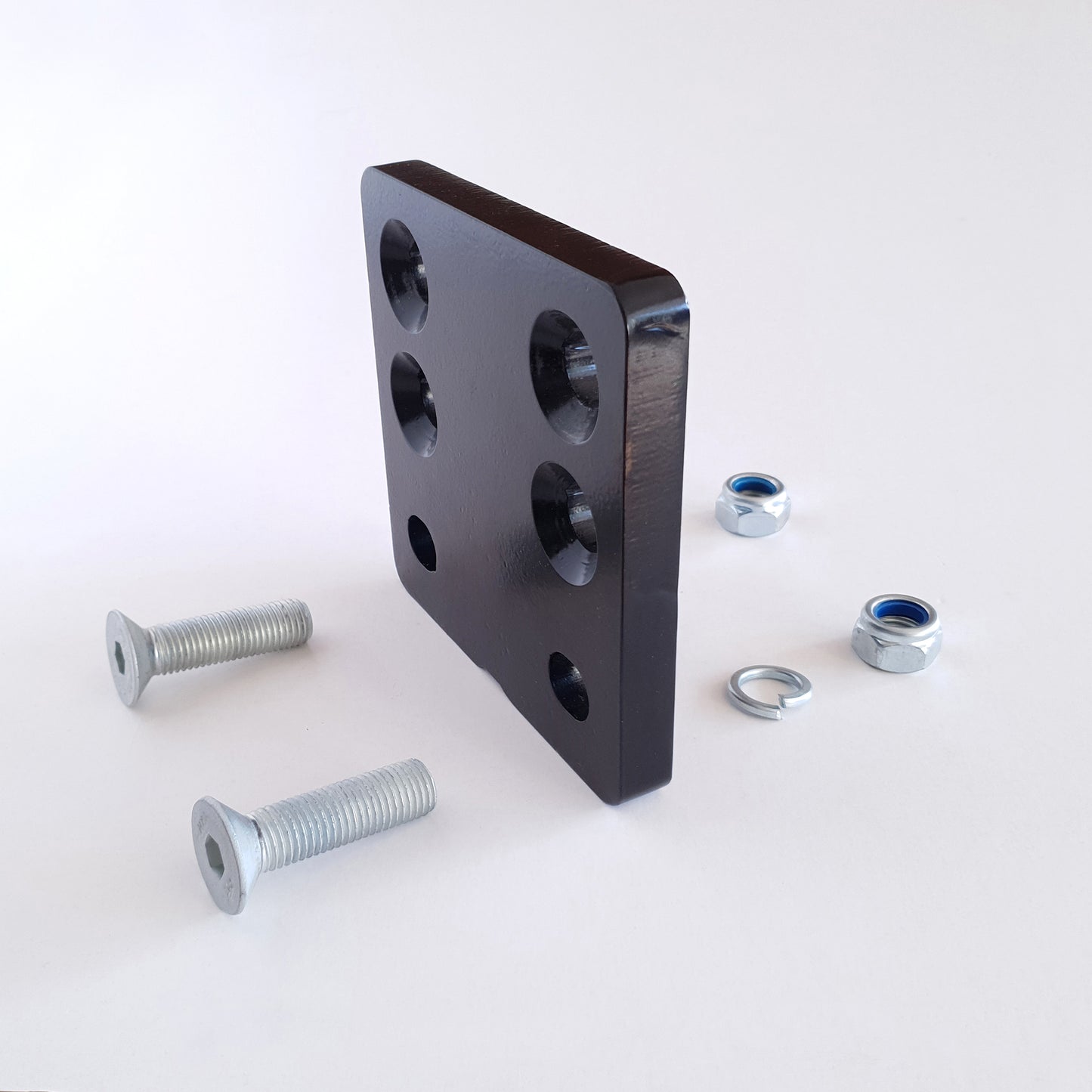

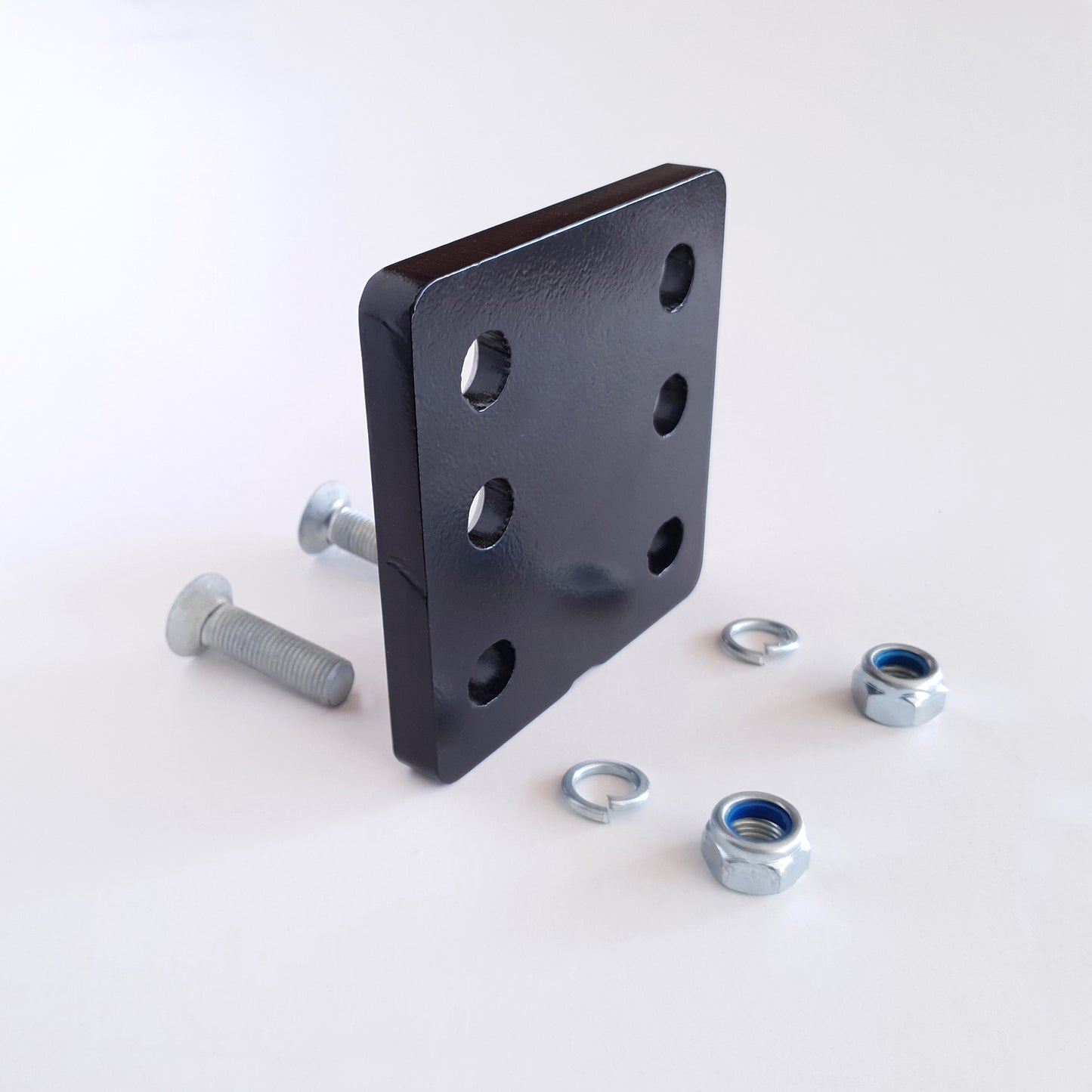

6 hole tow ball raiser or dropper plate - 16mm

6 hole tow ball raiser or dropper plate - 16mm

Regular price R 894.00 ZAR
Regular price Sale price R 894.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Extra thick and strong16mm Steel, Exterior Powder Coated
  • Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm centre to centre)
  • 145mm (H) x 145mm (W)

Benefits

  • Can raise or lower the tow ball by 50mm and 90mm
  • No Drilling required.
  • The new 50mm and 90mm adjustment holes are counter sunk at back for high tensile counter sunk screws.
  • Can also be used as a “6 hole spacer plate - 16mm” for a Uni. WC

Notes

  • Need 118mm vertical clearance from centre of factory std tow ball holes to top of spacer plate.
  • The original vehicles M16 Hexagonal bolts that hold the tow ball is generally too long and should sufficient for bolting the raiser/dropper plate to vehicle
  • We supply 2x M16 Counter sunk screws, Nyloc nuts and washers help to secure the tow ball only.
  • The countersunk head allows you to pre fit the tow ball to Raiser/dropper plate without the head of screw interfering with the factory tow ball plate, once fitted to vehicle
