Itrekz

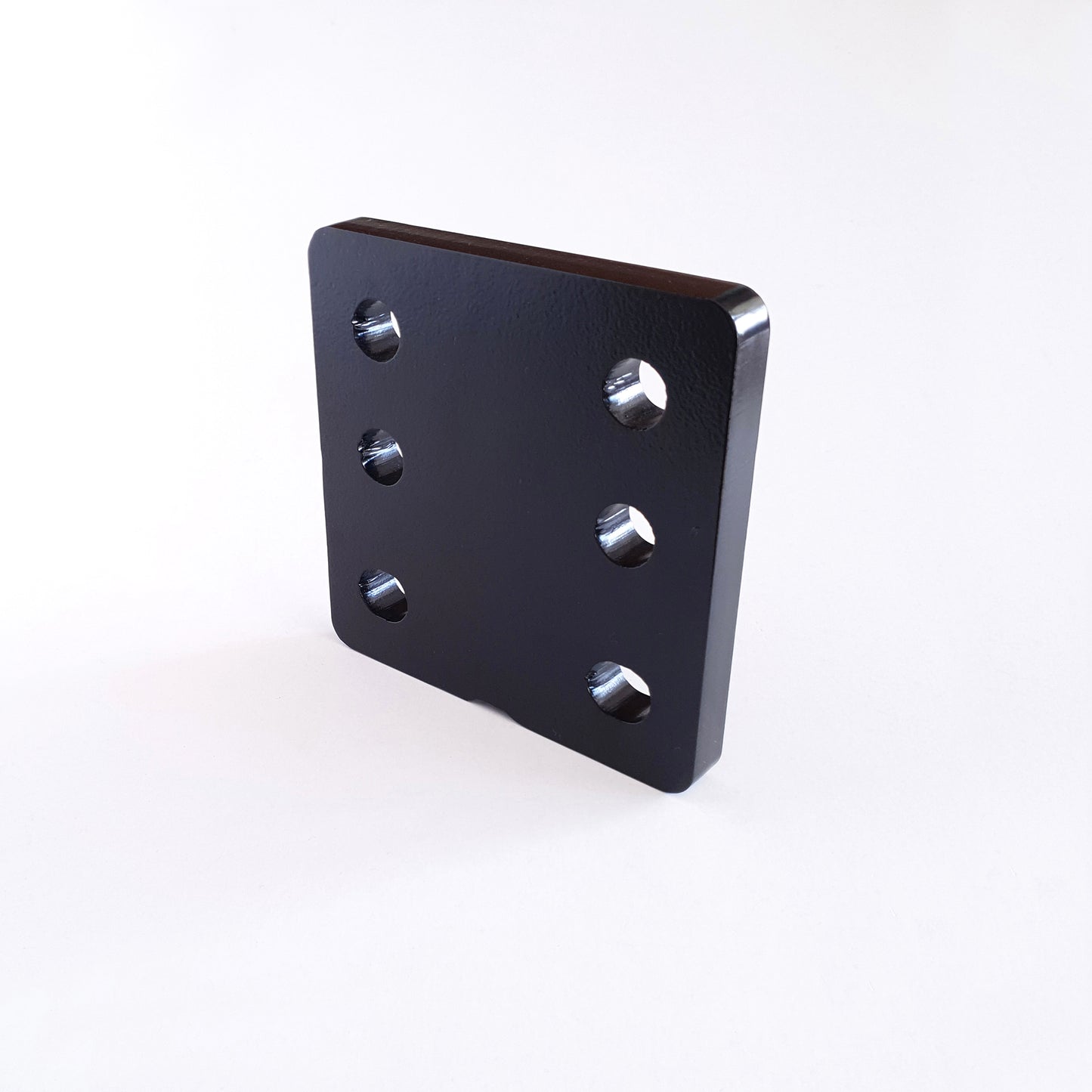

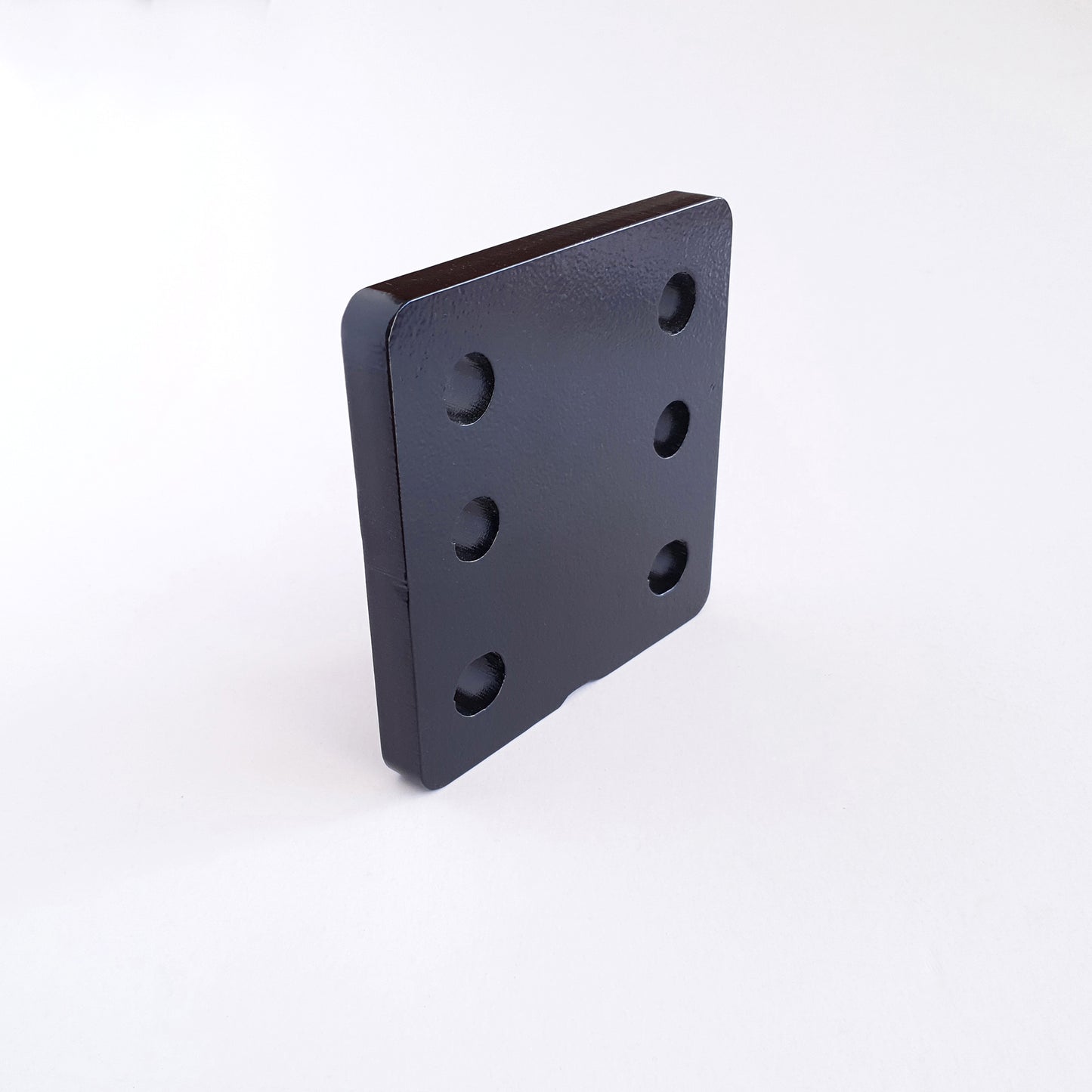

6 hole spacer plate - 16mm

6 hole spacer plate - 16mm

R 491.00 ZAR
R 491.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Extra thick and strong16mm Steel, Exterior Powder Coated
  • Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm centre to centre)
  • 145mm (H) x 145mm (W)

Benefits

  • Suited as a Uni. WC Spacer
  • This spacer, in conjunction with a optional extra “T6 Ford Ranger clamp” allows one to use an additional 2x bolts to secure the Uni. WC without drilling into 2012-2021 T6 Ford Ranger tow plate. (Not essential to use 4x bolts to secure Uni. WC - sometimes more is better i.e. for extremely bad off roads)
  • Can be used as a simple tow ball raiser/dropper plate with conventual M16 Bolts. You may need to drill out extra holes in your tow bar plate.
  • This is a similar item to the “6 hole tow ball raiser or dropper plate -16mm”. see for full description.

Notes

  • Need 118mm vertical clearance from centre of factory std tow ball holes to top edge of spacer plate.
  • The top holes is 50mm and 90mm higher than bottom tow ball holes.
  • You may need to redrill your existing tow ball plate for bolts to go through if you want to additional anchoring bolts to secure your Uni. WC (Min 16mm - Max 18mm through holes – or drill and tap smaller holes)
  • We do sell a "tow ball plate - drill jig" to make it easier to align and square up new holes Doesn’t come with counter sunk holes or 2x M16 counter sunk screws, whereas the Raiser/dropper plates does.
View full details

more about your 4 hole spacer plate - 16mm

FAQs

What are the similarities and differences between "Spacer Plates” and "Tow Ball Raiser/Dropper plates“?

  • Same dimensions and thickness – 16mm
  • Same hole spacings
  • Differences – the Spacer plates don’t come with counter holes and counter sunk holes. Whereas the Raiser/dropper plates does.
  • Both styles of metal plates allow you raise or drop the Tow ball, under different types of attachment.
  • Therefore you may need to drill holes for the Hex bolts when raising your tow ball with the BASIC spacer plate.  Provided you have space for a bolt head and tooling space to tighten on a tow ball/Uni. WC at the back of tow ball plate/frame
  • For Raiser/dropper plates/spacers the counter sunk holes and screws prevents drilling of your tow ball plates. This is an added benefit if you don’t have bolt head and tooling space behind you your tow ball plate to tighten the tow ball/Uni. WC on to it.
