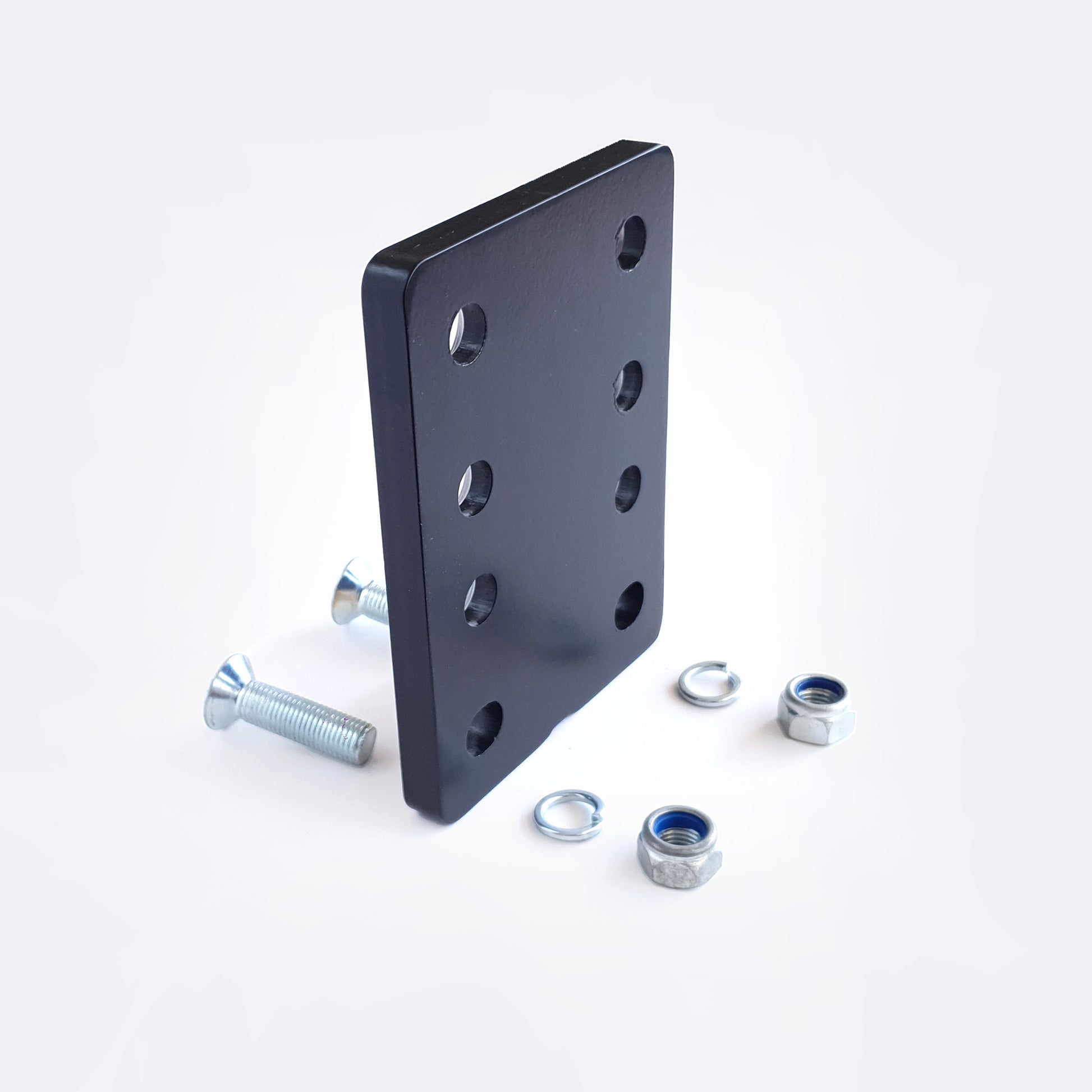

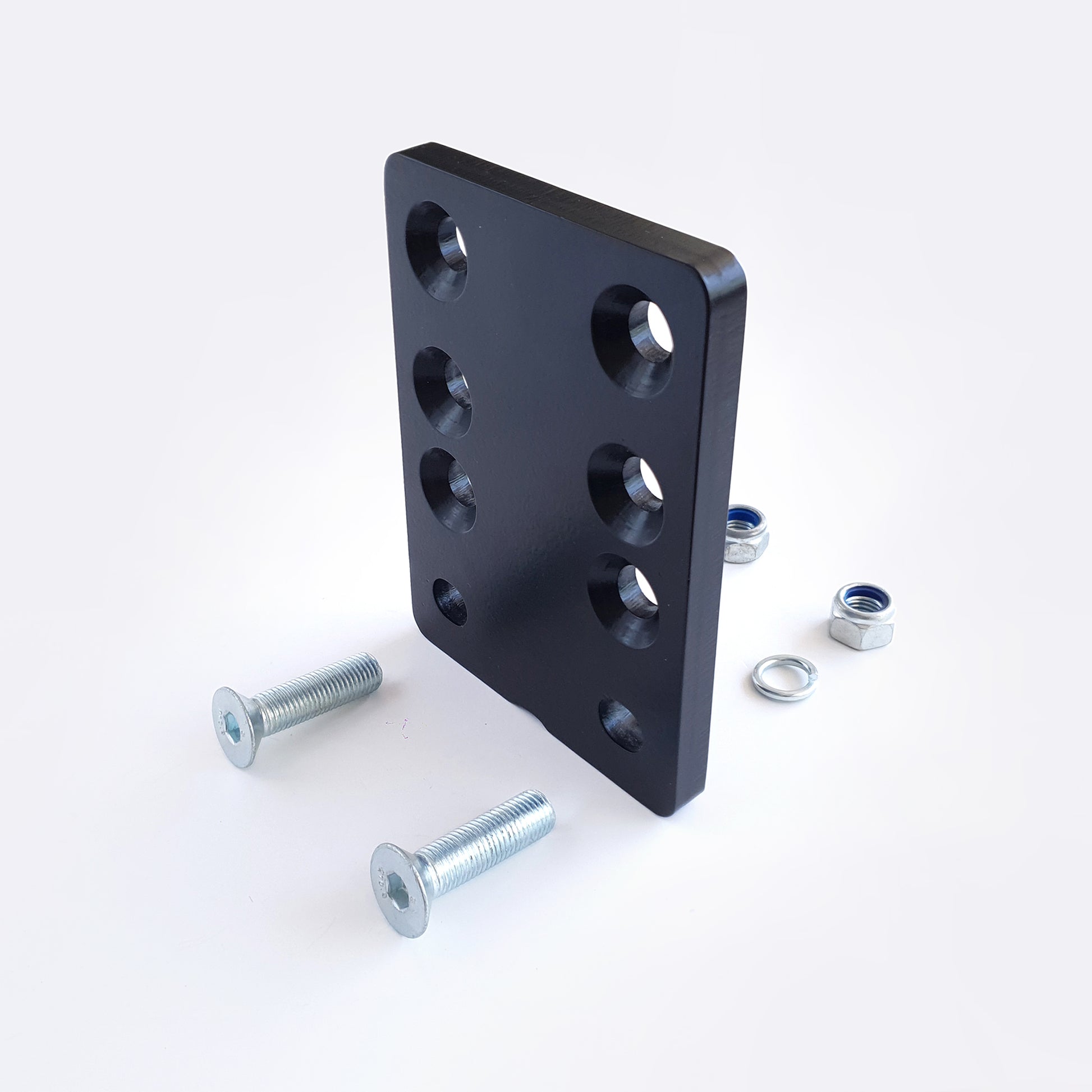

8 hole tow ball raiser or dropper plate - 16mm

• Extra thick and strong 16mm Steel, Exterior Powder Coated
• Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm center to center)
• 195mm (H) x 145mm (W)

Benefits

• Can raise or lower the tow ball by 50mm, 90mm and 140mm
• No Drilling required.

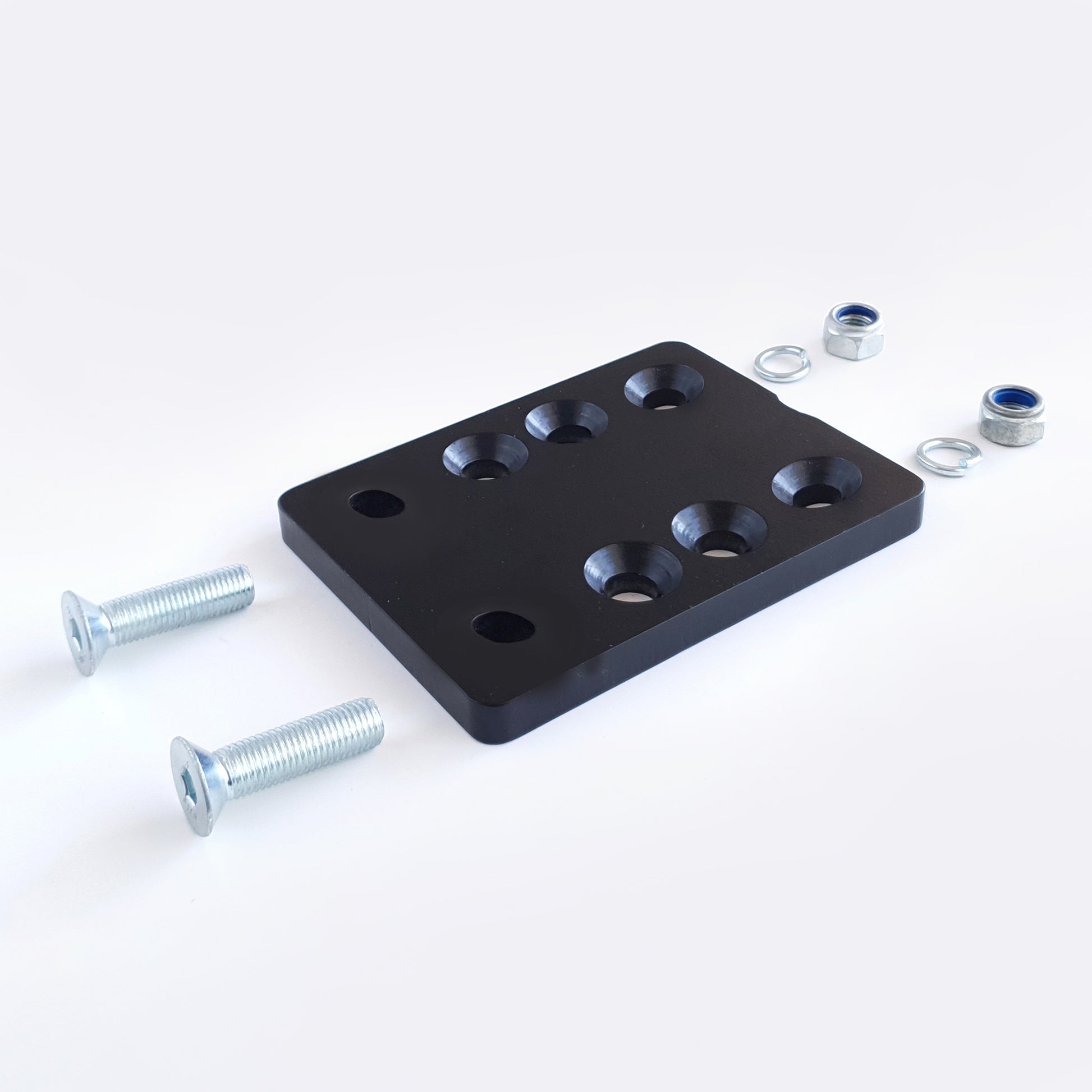

• The new 50mm and 90mm adjustment holes are counter sunk at back for high tensile counter sunk screws.
• Gives clearance for trailer Hitch when in use  with the Universal Wheel Carrier

Notes

• Need 168mm vertical clearance from center of factory std tow ball holes to top of spacer plate.
• You will most likely need a 4 hole Spacer plate between vehicle's tow ball plate and the new 8hole raiser/dropper plate to allow this plate to clear most bumpers
• The original vehicles M16 Hexagonal bolts that hold the tow ball is generally too long and should sufficient for bolting the raiser/dropper plate to vehicle
• We supply 2x M16 Counter sunk screws, Nyloc nuts and washers help to secure the tow ball only.
• The countersunk head allows you to pre-fit the tow ball to Raiser/dropper plate without the head of screw interfering with the factory tow ball plate, once fitted to vehicle
