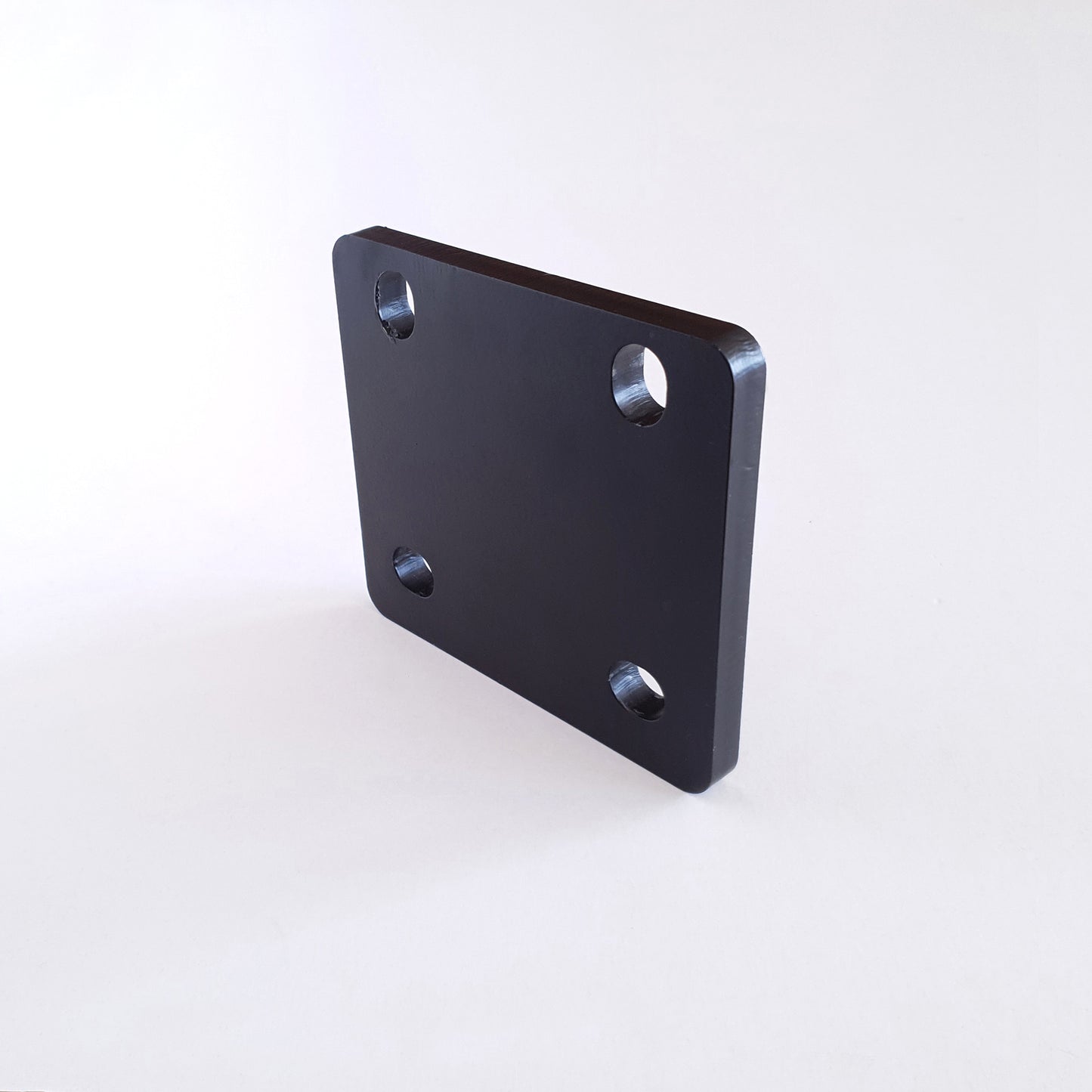

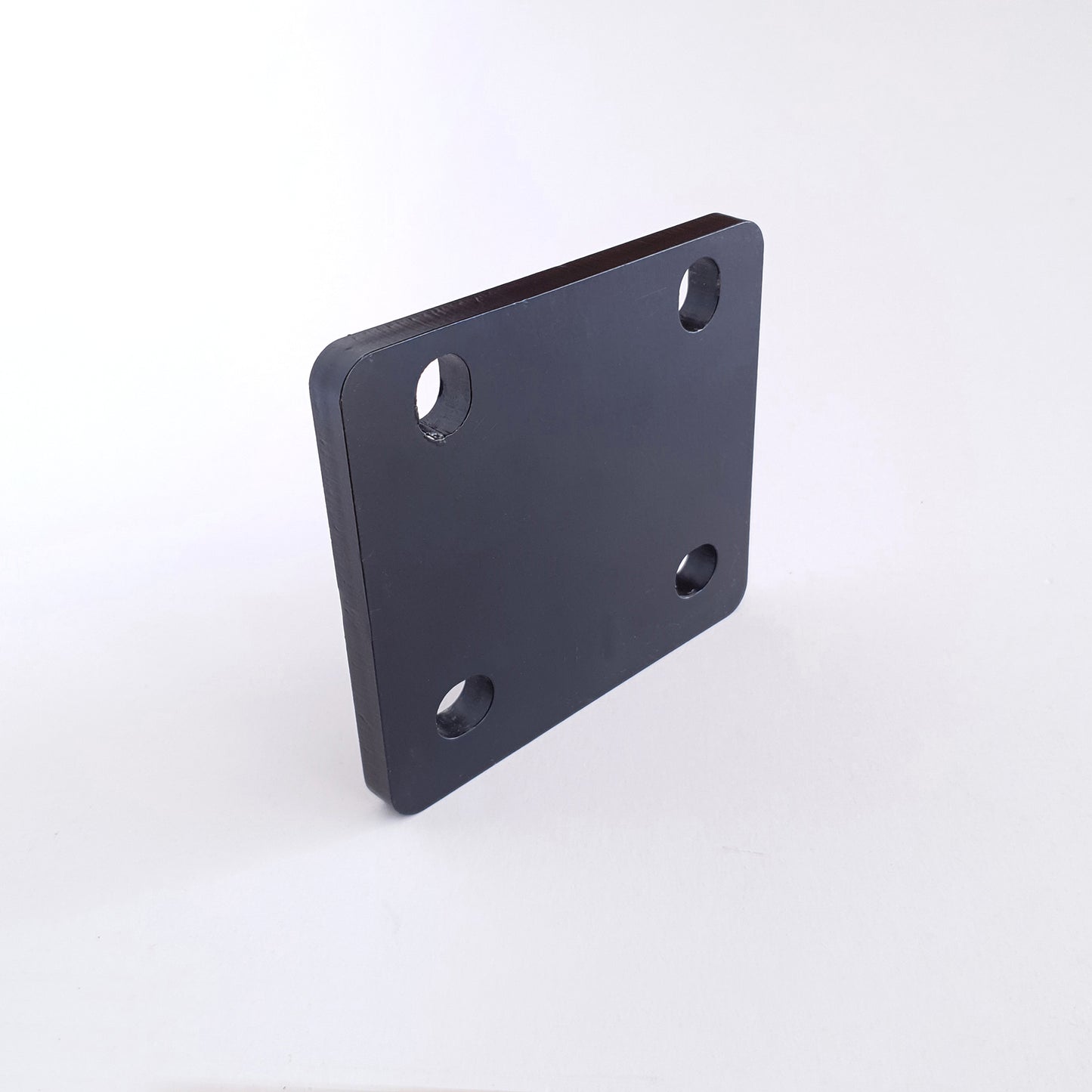

Tall 4 hole spacer/clamp plate -12mm

• 12mm Steel, Exterior Powder Coated
• Bolts onto std 2x hole pattern for Tow Balls (16mm holes – 90mm centre to centre)
• 131mm (H) x 145mm (W)

Benefits

• Suited as a Uni. WC Spacer
• Slotted holes for micro adjustment
• This spacer, in conjunction with a optional extra “T6 Ford Ranger clamp” allows one to use an additional 2x bolts to secure the Uni. WC without drilling into 2012-2021 T6 Ford Ranger tow plate.
• (Not essential to use 4x bolts to secure Uni. WC - sometimes more is better i.e. for extremely bad off roads)

Notes

• Need 106mm vertical clearance from centre of factory std tow ball holes to top edge of spacer plate.
• The top holes is 90mmm higher than bottom tow ball holes. There is also a 50mm centre punch (marked) in between if you would like to drill out.
•  you may need to redrill your existing tow ball plate for bolts to go through if you want to additional anchoring bolts to secure your Uni WC. (Min 16mm -Max 18mm through holes – or drill and tap smaller holes)
• We do sell a “tow ball plate - drill jig” to make it easier to align and square up new holes for self-drilling.
• DO NOT use the 90mm high holes as a tow ball riser. Rather buy the slightly taller “4 hole OR 6 hole tow ball raiser or dropper plate – 16mm” with more material around the higher top holes.
